description: >-
  This guide describes how to configure Mobb Vibe Shield (MVS) as an MCP (Model
  Context Protocol) server in Visual Studio Code.
---

# VS Code + GitHub Copilot

## Prerequisites

Before setting up MVS, ensure the following:

#### VS Code version

* **Version 1.99 or later** is required (MCP support is in preview).
* [Download latest VS Code](https://code.visualstudio.com/download)

#### GitHub Copilot permissions

If you are using GitHub Copilot through an **organization account**, confirm that your **Copilot policies** permit:

* **Copilot Chat in the IDE**
* **MCP servers in Copilot**

These settings are configured in your GitHub org admin panel under:\
`Settings → Copilot → Policies`

#### Node.js

Ensure **Node.js v18.20 or later** is installed. The MCP server uses `npx` and requires a modern Node.js runtime.

```bash
node --version
```

If not installed or outdated, install via [nodejs.org](https://nodejs.org/).

### Step 1: Enable MCP in VS Code

1. Open VS Code settings (Ctrl+Comma or `Cmd+,` on Mac).
2. Search for `chat.mcp.enabled` and check the box.

Alternatively, add this to your `settings.json`:

```json
"chat.mcp.enabled": true
```

### Step 2: Configure Mobb MCP Server

You can configure the MCP server either **per workspace** or **globally**.

#### Option A: Workspace-Level (`.vscode/mcp.json`)

1. In your project root, create `.vscode/mcp.json`:

```json
{
  "servers": {
    "mobb-mcp": {
      "type": "stdio",
      "command": "npx",
      "args": ["mobbdev@latest", "mcp"],
      "env": {
      }
    }
  }
}

```

This file can be committed to your repo and shared across your team.

{% hint style="success" %}
For single-tenant users, ensure you add the variables `API_URL` and `WEB_APP_URL` in the `env` section. Furthermore, `TOOLS_ENABLED` allows you to specify which [modes](..#modes) are allowed:

For example:

```json
{
  "servers": {
    "mobb-mcp": {
      "type": "stdio",
      "command": "npx",
      "args": ["mobbdev@latest", "mcp"],
      "env": {
        "API_URL": "https://api-st-<YOUR_TENANT_NAME>.mobb.ai/v1/graphql",
        "WEB_APP_URL": "https://<YOUR_TENANT_NAME>.mobb.ai",
        "TOOLS_ENABLED": ["check_for_available_fixes"]
      }
    }
  }
}
```
{% endhint %}

***

#### Option B: User-Level Configuration (`settings.json`)

1. Open Command Palette → `Preferences: Open Settings (JSON)`
2. Add or update the `mcp` section as follows:

```json
{
  "mcp": {
    "servers": {
      "mobb-mcp": {
        "type": "stdio",
        "command": "npx",
        "args": ["mobbdev@latest", "mcp"],
        "env": {
        }
      }
    }
  }
}
```

This allows you to reuse the same setup across all projects without repeating `.vscode` setup.

{% hint style="success" %}
For single-tenant users, ensure you add the variables `API_URL` and `WEB_APP_URL` in the `env` section. Furthermore, `TOOLS_ENABLED` allows you to specify which [modes](..#modes) are allowed:

For example:

```json
{
  "mcp": {
    "servers": {
      "mobb-mcp": {
        "type": "stdio",
        "command": "npx",
        "args": ["mobbdev@latest", "mcp"],
        "env": {
          "API_URL": "https://api-st-<YOUR_TENANT_NAME>.mobb.ai/v1/graphql",
          "WEB_APP_URL": "https://<YOUR_TENANT_NAME>.mobb.ai",
          "TOOLS_ENABLED": ["check_for_available_fixes"]
        }
      }
    }
  }
}
```
{% endhint %}

### Step 3: Start the Server

In VS Code:

1. Open the Command Palette (`Ctrl+Shift+P` or `Cmd+Shift+P`).

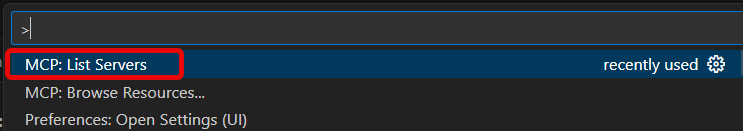

2.  Run `MCP: List Servers`

    <figure><img src="https://2539741639-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8WF4UBNkXMHG7Dz0RXI7%2Fuploads%2F60wRNzUsTvzsa7K0ib3p%2Fimage.png?alt=media&#x26;token=4e12086f-f539-4fc4-9187-b6655d6e83c9" alt=""><figcaption></figcaption></figure>

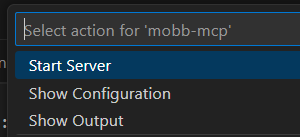

3.  In the list of configured MCP servers, locate **mobb-mcp**, then click **Start Server**.

    <figure><img src="https://2539741639-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8WF4UBNkXMHG7Dz0RXI7%2Fuploads%2FcEuRAwDMl4vsRuwDLbUt%2Fimage.png?alt=media&#x26;token=916659b3-b030-4e3a-9947-46e9f2e51715" alt=""><figcaption></figcaption></figure>

If successful, you’ll see `mobb-mcp` listed under available tools in Agent Chat (such as `scan_and_fix_vulnerabilities`, `fetch_available_fixes`, and `check_for_new_available_fixes`).

### Step 4: Use Mobb in Agent Mode

1. Open Copilot Chat (`Ctrl+Alt+I`)

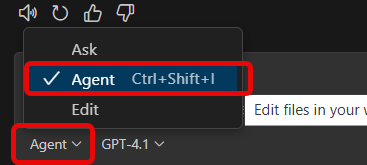

2.  Switch to **Agent Mode**

    <figure><img src="https://2539741639-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8WF4UBNkXMHG7Dz0RXI7%2Fuploads%2FgeGkLv9ttNnIgg8d6FYZ%2Fimage.png?alt=media&#x26;token=8cf9612f-02f6-4a3e-a9ba-971d104988a5" alt=""><figcaption></figcaption></figure>
3.  In the Agent Chat prompt box, type:

    ```
    Check for new available fixes using the Mobb MCP
    ```
4. Accept the execution
5. On first-time setup, MVS will open a browser window to connect to the Mobb platform. You will be prompted to log in and authorize the IDE integration.

## Deploying a Rulebook for Automated Fix Checks

To ensure `check_for_new_available_fixes` is always called at the end of every session, you should deploy a rulebook in your repository. In VS Code, this is typically done by adding a file named `.github/copilot-instructions.md` at the root of your project or repository.

**Example `.github/copilot-instructions.md` rulebook:**

```
# End-of-generation actions:

- After completing all reasoning, code edits, linting, and tests, ALWAYS call the `check_for_new_available_fixes` tool from the mobb-mcp toolset.
- Pass the absolute repository path as the `path` argument.
- Do NOT skip this step under any circumstance.
- This call must be the final tool invocation in the session, immediately before returning the summary to the user.
```

This instructs the agent to always invoke the tool at the end of each session, ensuring you are notified of new available fixes as soon as possible. For more information on custom instructions in VS Code, see the [GitHub Copilot documentation](https://docs.github.com/en/copilot/how-tos/custom-instructions/adding-repository-custom-instructions-for-github-copilot).

### Troubleshooting

* Run `MCP: Show Output` to see server logs (Open the Command Palette (`Ctrl+Shift+P` or `Cmd+Shift+P`))
* Validate `node` is available in the terminal by running `node --version`
* Check `mcp.json` for syntax or command errors
* Ensure GitHub Copilot Chat is working independently of Mobb first
* After you make changes to the MCP settings, you may need to restart VS Code
* Visit the [MCP servers in VS Code](https://code.visualstudio.com/docs/copilot/chat/mcp-servers) for additional info
